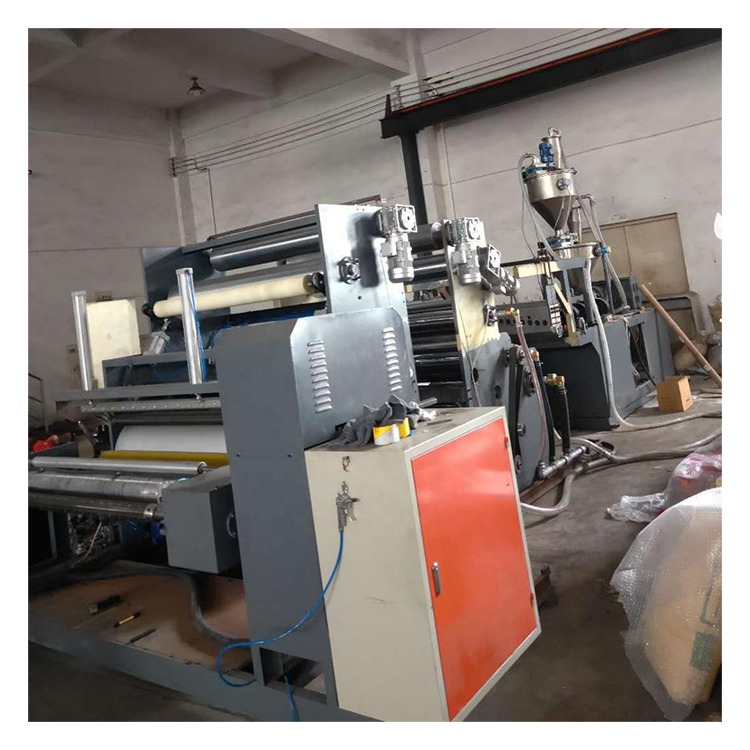

High Strength Film High Transparency PVC Cling Filmmaking Machine Extruder

USAGE

This production line uses PVC resin powder as the main raw material, and mixes various brands of auxiliary materials, which are fully stirred and extruded through an extruder to produce a self-adhesive PVC cling film. The film has high tensile strength, good mist drop performance, high transparency, and good surface gloss performance. The packaged goods are both beautiful and can maintain the freshness of the food for a long time. Therefore, it is widely used in the packaging and fresh-keeping storage of refrigerated products such as vegetables, cold dishes, fruits, raw meat, etc. in supermarkets, hotels, restaurants, bakeries, and households.

CHARACTERISTIC

1. Motors all adopt frequency inverter speed controllers, speed adjustable, energy saving.

2. Screw: Ratio 30:1, material 38CrMoAl-A grade Polished with Nitride Treatment, Nitride depth 0.7mm, HV>740; Barrel: material 38CrMoAl Polished with Nitride Treatment, Nitride depth 0.6mm, HV>900.

3. Screw heating zones adopt cast aluminum loops, and the Three-way adopts Cast Al. heating loop, each screw independent controlling.

4. Gear box: Involutes cylinder Bevel wheel, cast alloy steel piston, fine grinding national standard hard teeth gear surface gear box.

5. Die mold: imported mold steel, surface treatment of flow channel: hard chrome-plating.

8. Winding system, adopts PLC control automatic roll change rewinder.

8. With complete auxiliary equipment, like crusher, heating mixer, waste edge cutter, and automatic suction vacuum machine.

PARAMETER
